Y908 MAR

Name: Y908 MAR
Brand: Marathon Electric Motors
SKU: Y908 MAR
Availability: OutOfStock

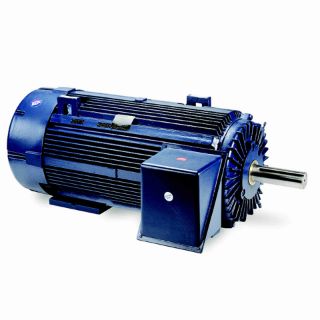

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y908

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

449TVFS6543

Features

Cast iron construction B-10 life on direct-coupled loads Open Conrad radial ball bearings rated for 100,000 hour B-10 life on direct-coupled loads Oversized, fabricated steel conduit box Class H insulation and form wound coils Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin Grease fittings with extended grease tubes Internal and external epoxy finish

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	56.79
CE:	N
Connection Drawing Number:	A-EE7304
Country of Origin:	United States of America
CSA:	N
Current:	67.0/38.5
DE Bearing Size:	6319
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	95.8
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	28.75
Frame Material:	Cast Iron
Frame Size:	449
Frame Suffix:	T
Frame Type:	447/449T
Frequency:	60
Harmonized Tariff Code:	8501.53.8040
HP:	300
Insulation Class:	H
IP Code:	54
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6318
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS516690-2875
Phases:	3
Power Factor:	87.5
Power Rating (HP):	300
Power Rating (kW):	224.0
Resistance Main:	.225
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.375
Shaft Extension:	8.75
Shaft Type:	T
Speed:	1788
Speed Max:	1788
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	No
Voltage:	2300/4000

Resources

Spec Sheet
