Y935 MAR

Name: Y935 MAR
Brand: Marathon Electric Motors
SKU: Y935 MAR
Availability: OutOfStock

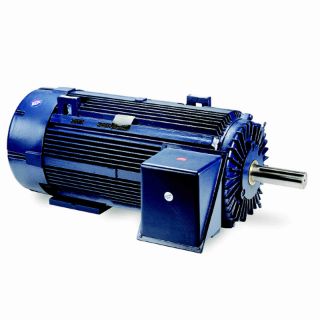

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y935

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

5011LXVFS6579

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Cast iron construction B-10 life on direct-coupled loads Open Conrad radial ball bearings rated for 100,000 hour B-10 life on direct-coupled loads Oversized, fabricated steel conduit box Class H insulation and form wound coils Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin Grease fittings with extended grease tubes Internal and external epoxy finish

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	73.80
CE:	N
Connection Drawing Number:	A-EE7304AC
Country of Origin:	United States of America
CSA:	Y
Current:	81.5/47.0
DE Bearing Size:	6324
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	95.8
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	49.5
Frame Material:	Cast Iron
Frame Size:	5011
Frame Suffix:	LX
Frame Type:	5011LX
Frequency:	60
Harmonized Tariff Code:	8501.53.8040
HP:	350
Insulation Class:	H
IP Code:	55
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6318
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS518707-4950
Phases:	3
Power Factor:	83
Power Rating (HP):	350
Power Rating (kW):	260.0
Resistance Main:	.28
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.875
Shaft Extension:	12.3
Shaft Type:	LX
Speed:	1190
Speed Max:	1190
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	No
Voltage:	2300/4000
