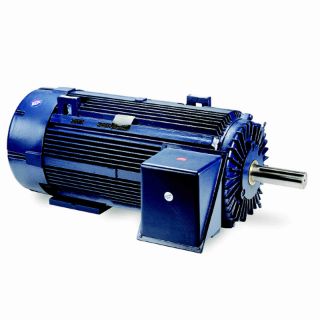

Y951 MAR

Name: Y951 MAR
Brand: Marathon Electric Motors
SKU: Y951 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Y951

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

449TVDN6042

Features

NEMA Premium efficiencies as noted Cast iron construction B-10 life on direct-coupled loads Open Conrad radial ball bearings rated for 100,000 hour B-10 life on direct-coupled loads Roller bearing for belted loads Oversized, fabricated steel conduit box 1.15 Service Factor as available (consult factory) Class H insulation and form wound coils Epoxy, 100% solids, Vacuum Pressure Impregnation (VPI) resin Grease fittings with extended grease tubes Internal and external epoxy finish

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	48.31
CE:	N
Connection Drawing Number:	A-EE7304
Country of Origin:	United States of America
CSA:	N
Current:	59/34
DE Bearing Size:	6319
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	94.1
Electrical Type:	SQ CAGE IND RUN
Enclosure Type:	DP
Frame Length (IN):	29.38
Frame Material:	CAST IRON
Frame Size:	449
Frame Suffix:	T
Frame Type:	449T
Frequency:	60
Harmonized Tariff Code:	8501.53.8040
HP:	250
Insulation Class:	H
IP Code:	12
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	RIGID
NEMA Design:	B
Number of Poles:	4
ODE Bearing Size:	6314
ODE Bearing Type:	BALL
Outline Drawing Number:	B-SS515020-2938
Phases:	3
Power Factor:	83
Power Rating (HP):	250
Power Rating (kW):	187
Resistance Main:	0.4
Rotation:	REV
Service Factor:	1.15
Shaft Diameter (IN):	3.38
Shaft Extension:	8.5
Shaft Type:	T
Speed:	1785
Speed Max:	1785
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	NONE
UL:	No
Voltage:	2300/4000

Resources

Spec Sheet
