YAS 35 PT SGT TKN

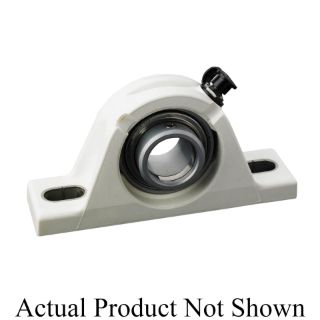

Picture of YAS 35 PT SGT TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
YAS 35 PT SGT
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$371.90 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Standard Duty

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken®, YAS 35 PT SGT, Pillow Block Ball Bearing Housed Unit, Standard Duty, Series: YAS Series, 34.798 mm Bore, 130.2 mm Bolt Center-to-Center Length, 47.63 mm Base to Bore Centerline, 166.7 mm Overall Length, 130.048 mm Overall Width, 93.6 mm Overall Height, High Base Mounting, Round Bore, Set Screw Locking Device, Contact Seal, 5770 lb Dynamic/3440 lb Static Load, 250 deg F, 5000 rpm Maximum, Polymer

Application

Food and Beverage, Waste Water, Car Washes, Highway Salt and Sand, Chemical and Rubber, Pharmaceutical, Maritime, Paper Mills and Material Handling Applications

Standards

FDA Compliant | Precision Class ABEC 1 | USDA Accepted

Features

  • Timken® Survivor® series pillow block and flanged units excel in highly corrosive environments
  • A proprietary thin dense chrome (TDC) coating is applied to all bearing inserts for superior corrosion protection
  • The TDC coating is designed to not crack or peel under known application conditions
  • The unit is factory lubricated with FDA/USDA approved grease (class H1 lubricant) for incidental food contact

Specifications

Base to Bore Centerline:47.63 mm
Bolt Center-to-Center Length:130.2 mm
Bore Diameter:34.798 mm
Bore Type:Round
Load Capacity:5770 lb Dynamic/3440 lb Static
Locking Device:Set Screw
Material:Polymer
Maximum Speed:5000 rpm
Mounting Type:High Base
Overall Height:93.6 mm
Overall Length:166.7 mm
Overall Width:130.048 mm
Seal Type:Contact
Series:YAS Series
Temperature Rating:250 deg F

Products Specifications

Brand Name
Timken
