YAS1 15/16 SGT TKN

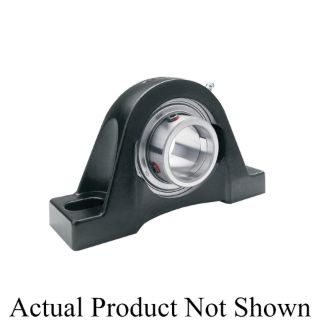

Picture of YAS1 15/16 SGT TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
YAS1 15/16 SGT
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$328.17 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, YAS1 15/16 SGT, Pillow Block Ball Bearing Unit, Normal Duty, Series: YAS, 1-15/16 in Bore, 6.22 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 7.882 in Overall Length, 2-1/32 in Overall Width, 4-1/2 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.28 in Base Width, Set Screw Locking Device, Shroud Seal, Non-Expansion (Fixed), 7890 lb Dynamic/5210 lb Static Load, 250 deg F, 3000 rpm Maximum, Cast Iron, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • Incorporates shaft guarding technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
  • Heavier than our standard block with solid, flat feet for increased strength
  • Timken® YAS series high-base, set screw pillow blocks feature the GY-KRRB bearing
  • Housing is designed for two bolt mounting in any position
  • All units are supplied with setscrew and shaft guarding technology

Specifications

Base to Bore Centerline:2-1/4 in
Base Width:2.28 in
Bolt Center-to-Center Length:6.22 in
Bore Diameter:1-15/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Uncoated
Load Capacity:7890 lb Dynamic/5210 lb Static
Locking Device:Set Screw
Material:Cast Iron
Maximum Speed:3000 rpm
Mounting Type:Two-Bolt Base
Overall Height:4-1/2 in
Overall Length:7.882 in
Overall Width:2-1/32 in
Seal Type:Shroud
Series:YAS
Temperature Rating:250 deg F
