YAS1 3/8 SGT TKN

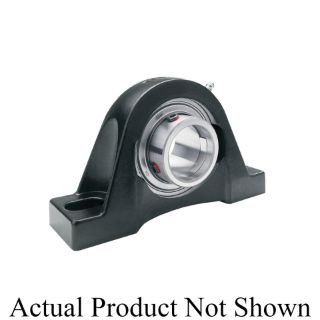

Picture of YAS1 3/8 SGT TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
YAS1 3/8 SGT
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$224.98 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, YAS1 3/8 SGT, Pillow Block Ball Bearing Unit, Normal Duty, Series: YAS, 1-3/8 in Bore, 5.126 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6.563 in Overall Length, 1-11/16 in Overall Width, 3.752 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.843 in Base Width, Set Screw Locking Device, Shroud Seal, Non-Expansion (Fixed), 5770 lb Dynamic/3440 lb Static Load, 250 deg F, 3930 rpm Maximum, Cast Iron, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • Incorporates shaft guarding technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
  • Heavier than our standard block with solid, flat feet for increased strength
  • Timken® YAS series high-base, set screw pillow blocks feature the GY-KRRB bearing
  • Housing is designed for two bolt mounting in any position
  • All units are supplied with setscrew and shaft guarding technology

Specifications

Base to Bore Centerline:1-7/8 in
Base Width:1.843 in
Bolt Center-to-Center Length:5.126 in
Bore Diameter:1-3/8 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Uncoated
Load Capacity:5770 lb Dynamic/3440 lb Static
Locking Device:Set Screw
Material:Cast Iron
Maximum Speed:3930 rpm
Mounting Type:Two-Bolt Base
Overall Height:3.752 in
Overall Length:6.563 in
Overall Width:1-11/16 in
Seal Type:Shroud
Series:YAS
Temperature Rating:250 deg F

Products Specifications
