YCJT 3/4 PT SGT TKN

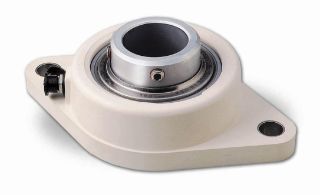

Picture of YCJT 3/4 PT SGT TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
YCJT 3/4 PT SGT
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$247.59 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Fafnir®

Type

Normal Duty PT SGT

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, YCJT 3/4 PT SGT, Flange Mount Ball Bearing Unit, Normal Duty PT SGT, Series: YCJT, 5/8 in Bore, 2-1/2 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4.41 in Overall Length/Diameter, 1-1/2 in Overall Depth, 1.158 in Overall Height, Set Screw Locking Device, Steel Bearing, 2380 lb Dynamic/1070 lb Static Load, 9200 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Standards

FDA/USDA Approved

Features

  • This unit is used for the main portion of the process where loads are lighter and corrosion protection is important
  • Durable corrosion-proof polymer housing with stainless steel crush bushings in mounting holes and a stainless steel grease fitting with a nylon cap
  • The polymer strength exceeds static capacity of bearing housing retains proper bearing fit and resists shock loads
  • The flush base contains no voids where bacteria can collect
  • Corrosion-resistant insert bearing with stainless steel balls and a nylon retainer
  • The PT series also features industrial duty contact seals with stainless steel shroud-caps
  • This unit has stainless steel set screws with shaft guarding technology

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:2-1/2 in
Bore Diameter:5/8 in
Finish:Uncoated
Flange Mounting Type:4-Bolt
Load Capacity:2380 lb Dynamic/1070 lb Static
Locking Device:Set Screw
Maximum Speed:9200 rpm
Overall Depth:1-1/2 in
Overall Height:1.158 in
Overall Length/Diameter:4.41 in
Series:YCJT
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
3/4 in
