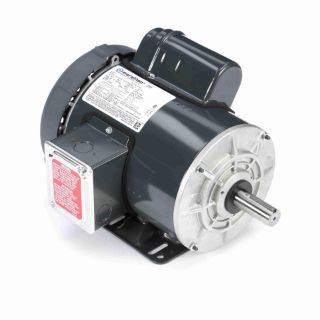

Z123 MAR

Name: Z123 MAR
Brand: Marathon Electric Motors
SKU: Z123 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Z123

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

143TCFR5328

Features

Shaft end mechanically locked on C-face models Capacitor start design for high starting torque Shaft slinger Low temperature manual reset thermal protector Totally enclosed and fully gasketed construction for dirty environments Condensate drains

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	12.87
CE:	Y
Connection Drawing Number:	A-102005-52
Country of Origin:	Mexico
CSA:	Y
Current:	13.4/6.8-6.7
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	72
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	143
Frame Suffix:	T
Frame Type:	143T
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1
Insulation Class:	B
IP Code:	43
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100175-756
Phases:	1
Power Factor:	69.5
Power Rating (HP):	1
Power Rating (kW):	0.75
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.28
Shaft Type:	T
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	Manual
UL:	Recognized ( Not Protector)
Voltage:	115/208-230
