Z314 MAR

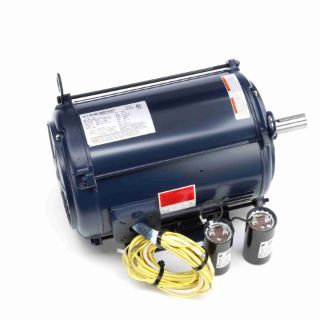

Picture of Z314 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Z314
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

215TCDW7012

Features

Double sealed ball bearings Continuous duty Class F insulation system Thermostats for thermal overload protection (auto reset protector on Z304) 34” long leads for ease of installation Keyed shafts with 1/4”-20 UNC tapped hole in end Capacitors included, shipped loose on catalog Z307 and Z308, mounted on all other models Extra nameplate included, loose, for remote mounting Capacitor start induction run design

Specifications

Assembly/Box Mounting:F3
C Dim (IN):19.16
CE:N
Connection Drawing Number:A-EE9048PF
Country of Origin:Mexico
CSA:Y
Current:37.0
DE Bearing Size:6307
DE Bearing Type:Ball
Duty:Continuous
Efficiency:84
Electrical Type:Capacitor Start Induction Run
Enclosure Type:Drip Proof Air Over
Frame Length (IN):11.15
Frame Material:Rolled Steel
Frame Size:215
Frame Suffix:TZ
Frame Type:215TZ
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:7.50
Insulation Class:F
IP Code:22
KVA Code:F
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:No Design Code
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:A-SS87927-1115
Phases:1
Power Factor:78
Power Rating (HP):7.50
Power Rating (kW):5.6
Resistance Main:.156
Rotation:Selective Counterclockwise
Service Factor:1.4
Shaft Diameter (IN):1.125
Shaft Extension:4.59
Shaft Type:Single Special Extension
Speed:3515
Speed Max:3515
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
7 1/2 HP
Speed Rating
3515
Type
Capacitor Start Induction Run
Voltage Rating
230
