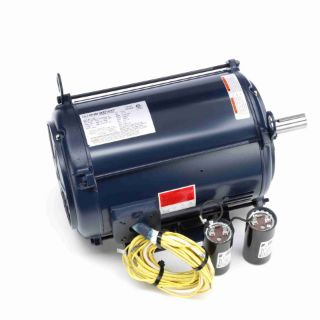

Z315 MAR

Name: Z315 MAR
Brand: Marathon Electric Motors
SKU: Z315 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Z315

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

215TBDW7013

Features

Double sealed ball bearings Continuous duty Class F insulation Thermostats for thermal overload protection (auto reset protector on Z304) 34” long leads for ease of installation Keyed shafts with 1/4”-20 UNC tapped hole in end Capacitors included Extra nameplate included, loose, for remote mounting

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	20.42
CE:	N
Connection Drawing Number:	A-EE9048PH
Country of Origin:	United States of America
CSA:	Y
Current:	39.5
DE Bearing Size:	6307
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	85.5
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	12.4
Frame Material:	Rolled Steel
Frame Size:	215
Frame Suffix:	TZ
Frame Type:	215TZ
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	10
Insulation Class:	F
IP Code:	12
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS87934-1240
Phases:	1
Power Factor:	82
Power Rating (HP):	10
Power Rating (kW):	7.5
Resistance Main:	.113
Rotation:	Selective Counterclockwise
Service Factor:	1.5
Shaft Diameter (IN):	1.125
Shaft Extension:	4.59
Shaft Type:	Single Special Extension
Speed:	3520
Speed Max:	3520
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230
