Z401 MAR

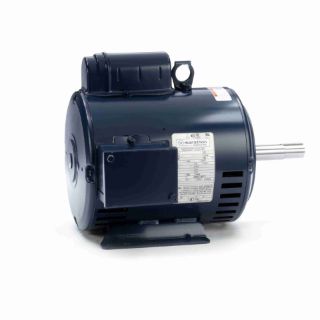

Picture of Z401 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Z401
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

143TCDR5328

Features

NEMA JM pump shaft dimensions Mechanically locked on shaft end Capacitor start design for high starting torque Continuous duty

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):13.62
CE:Y
Connection Drawing Number:102005-51
Country of Origin:United States of America
CSA:Y
Current:13.4/6.8-6.7
DE Bearing Size:6206
DE Bearing Type:Ball
Duty:Continous
Efficiency:72
Electrical Type:Capacitor Start Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):7.56
Frame Material:Rolled Steel
Frame Size:143
Frame Suffix:JM
Frame Type:143JM
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:1
Insulation Class:B
IP Code:22
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-100174-756
Phases:1
Power Factor:69.5
Power Rating (HP):1
Power Rating (kW):0.75
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):0.875
Shaft Extension:4.25
Shaft Type:JM
Speed:1725
Speed Max:1725
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:115/208-230

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1 HP
Speed Rating
1725
Type
Capacitor Start Induction Run
Voltage Rating
208-230
