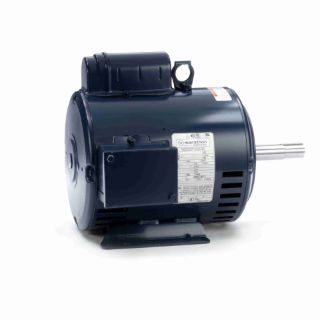

Z403 MAR

Name: Z403 MAR
Brand: Marathon Electric Motors
SKU: Z403 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

Z403

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

145TCDR5328

NEMA JM pump shaft dimensions Mechanically locked on shaft end Capacitor start design for high starting torque Continuous duty

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	14.62
CE:	Y
Connection Drawing Number:	102005-51
Country of Origin:	United States of America
CSA:	Y
Current:	18.0/9.3-9.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	77
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	JM
Frame Type:	145JM
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1.50
Insulation Class:	B
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100174-856
Phases:	1
Power Factor:	71.3
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	.29
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	4.13
Shaft Type:	JM
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/208-230
