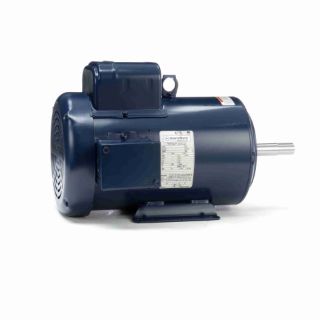

Z404 MAR

Name: Z404 MAR
Brand: Marathon Electric Motors
SKU: Z404 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Z404

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TBDR5304

Features

NEMA JM pump shaft dimensions Mechanically locked on shaft end Capacitor start design for high starting torque Capacitor start/capacitor run design for higher efficiency Continuous duty

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	13.62
CE:	Y
Connection Drawing Number:	102006-51
Country of Origin:	United States of America
CSA:	Y
Current:	19.1/10.5-9.5
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	78.5
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	JM
Frame Type:	145JM
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	2
Insulation Class:	B
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	B-100311-756
Phases:	1
Power Factor:	86.5
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	4.25
Shaft Type:	JM
Speed:	3500
Speed Max:	3500
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/208-230
