Z405 MAR

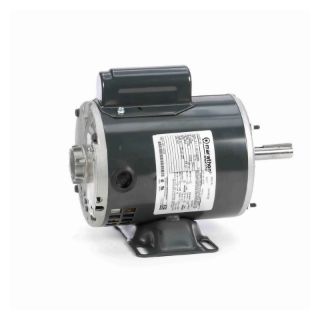

Picture of Z405 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
182TCDR7074
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous Duty

Description

Marathon® AC Motor, 4-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, Capacitor Start Motors Special Features, 2 hp, 115/230 VAC, 23/11.5 A, 60 Hz Frequency, 1 ph ph, 1740 rpm Speed, Drip-Proof Enclosure, 182JM Frame, 1.13 in Dia x 4.28 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 7.61 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 16.09 in L x 10.77 in W x 10.41 in H Dimensions

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:23/11.5 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:16.09 in L x 10.77 in W x 10.41 in H
Enclosure Type:Drip-Proof
Frame:182JM
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:C-Face/Rigid Base
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:1.13 in Dia x 4.28 in L
Speed:1740 rpm
Temperature Rating:40 deg C
Torque Rating:7.61 ft-lb
Voltage Rating:115/230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
2 HP
Speed Rating
1740
Type
Capacitor Start Induction Run
Voltage Rating
230
