Z408 MAR

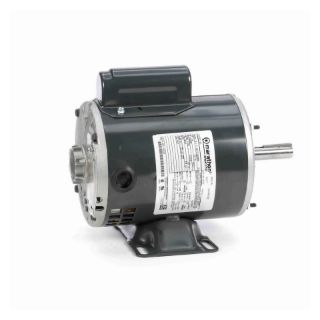

Picture of Z408 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
184TCDR7011
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous Duty

Description

Marathon® AC Motor, 2-Pole Continuous Duty, Application Type: Jet Pump (JM/JP) Motors, Special Features: Capacitor Start Motors, 5 hp, 230 VAC, 24 A, 60 Hz, 1 ph, 3510 rpm, Drip-Proof, 184JM Frame, 0.88 in Dia x 4.28 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 9.36 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 17.09 in L x 10.41 in H

Standards

CE | CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:24 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:17.09 in L x 10.41 in H
Enclosure Type:Drip-Proof
Frame:184JM
Frequency Rating:60 Hz
Horsepower:5 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Rigid Base
Phase:1 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.88 in Dia x 4.28 in L
Speed:3510 rpm
Temperature Rating:40 deg C
Torque Rating:9.36 ft-lb
Voltage Rating:230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
5 HP
Speed Rating
3510
Type
Capacitor Start Induction Run
Voltage Rating
230
