Z426 MAR

Name: Z426 MAR
Brand: Marathon Electric Motors
SKU: Z426 MAR
Availability: OutOfStock

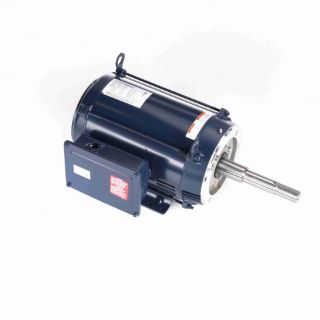

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Z426

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TCDR7626

Features

NEMA JP pump shaft dimensions Ball bearings, mechanically locked on shaft end Capacitor start design for high starting torque F1 mounting only, cannot reassemble to F2 Continuous duty 1.15 Service Factor UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	20.65
CE:	Y
Connection Drawing Number:	A-EE7085FR
Country of Origin:	United States of America
CSA:	Y
Current:	33.0/16.5
DE Bearing Size:	6307
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	77.4
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	8.25
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	JP
Frame Type:	184JP
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	3
Insulation Class:	B
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS67000-825
Phases:	1
Power Factor:	76.2
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	7.34
Shaft Type:	JP
Speed:	1758
Speed Max:	1758
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/230
