Z428 MAR

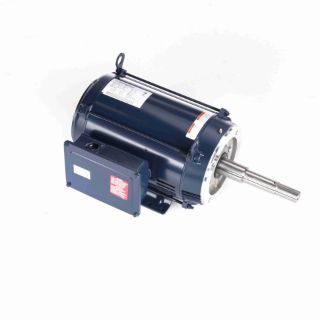

Picture of Z428 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Z428
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

213TCDW7028

Features

NEMA JP pump shaft dimensions Mechanically locked on shaft end Capacitor start design for high starting torque Will not accept a drip cover kit Continuous duty

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):23.79
CE:Y
Connection Drawing Number:A-EE7090JL
Country of Origin:United States of America
CSA:Y
Current:28.0
DE Bearing Size:6309
DE Bearing Type:Ball
Duty:Continuous
Efficiency:78.5
Electrical Type:Capacitor Start Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):11.15
Frame Material:Rolled Steel
Frame Size:213
Frame Suffix:JP
Frame Type:213JP
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:5
Insulation Class:B
IP Code:22
KVA Code:H
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:A-SS86684-1115
Phases:1
Power Factor:73
Power Rating (HP):5
Power Rating (kW):3.7
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):1.25
Shaft Extension:8.12
Shaft Type:JP
Speed:1730
Speed Max:1730
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
5 HP
Speed Rating
1730
Type
Capacitor Start Induction Run
Voltage Rating
230
