Z430 MAR

Name: Z430 MAR
Brand: Marathon Electric Motors
SKU: Z430 MAR
Availability: OutOfStock

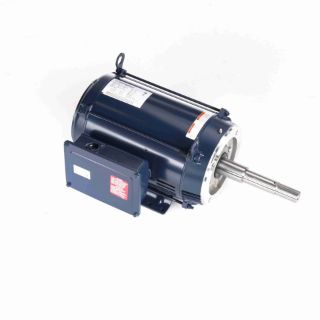

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

Z430

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

215TBDW7045

Features

NEMA JP pump shaft dimensions Ball bearings, mechanically locked on shaft end Capacitor start design for high starting torque Capacitor start / capacitor run design for higher efficiency Continuous duty 1.15 Service Factor Will not accept drip cover kit

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	23.79
CE:	Y
Connection Drawing Number:	A-EE9048MF
Country of Origin:	Mexico
CSA:	Y
Current:	34.5
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	84
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	11.15
Frame Material:	Rolled Steel
Frame Size:	215
Frame Suffix:	JP
Frame Type:	215JP
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	7.50
Insulation Class:	F
IP Code:	23
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	037644-1115
Phases:	1
Power Factor:	85.5
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	1.25
Shaft Extension:	8.12
Shaft Type:	JP
Speed:	1735
Speed Max:	1735
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230
