Z433 MAR

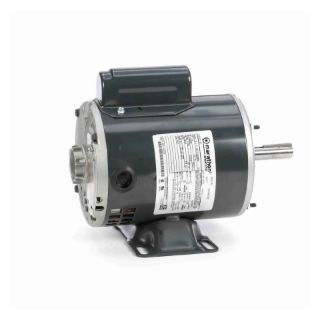

Picture of Z433 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
184TBFR7315
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous Duty

Description

Marathon® AC Motor, 2-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, Capacitor Start Motors Special Features, 5 hp, 230 VAC, 22.4 A, 60 Hz Frequency, 1 ph ph, 3510 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184JM Frame, 0.88 in Dia x 4.28 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 8.61 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 19.75 in L x 11.43 in W Dimensions

Standards

CE | CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:22.4 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:19.75 in L x 11.43 in W
Enclosure Type:Totally Enclosed Fan Cooled
Frame:184JM
Frequency Rating:60 Hz
Horsepower:5 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Rigid Base
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:0.88 in Dia x 4.28 in L
Speed:3510 rpm
Temperature Rating:40 deg C
Torque Rating:8.61 ft-lb
Voltage Rating:230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Totally Enclosed Fan Cooled
Frequency Rating
60
Horsepower
5 HP
Speed Rating
3510
Type
Capacitor Start Capacitor Run
Voltage Rating
230
