Z502 MAR

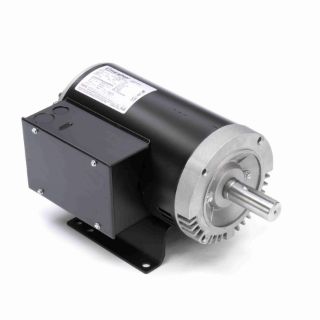

Picture of Z502 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
Z502
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

184TBDR5326

Features

Capacitor start / capacitor run design for low amps and high efficiency High starting and breakdown torque Heavy gauge steel frame and base Continuous duty at nameplate ratings

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):14.27
CE:Y
Connection Drawing Number:102006-72
Country of Origin:Mexico
CSA:Y
Current:12.1
DE Bearing Size:6206
DE Bearing Type:Ball
Duty:Continuous
Efficiency:82.5
Electrical Type:Capacitor Start Capacitor Run
Enclosure Type:Drip Proof
Frame Length (IN):9.56
Frame Material:Rolled Steel
Frame Size:184
Frame Suffix:T
Frame Type:184T
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:3
Insulation Class:B
IP Code:22
KVA Code:H
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-100328-956
Phases:1
Power Factor:96.5
Power Rating (HP):3
Power Rating (kW):2.2
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):1.125
Shaft Extension:2.78
Shaft Type:T
Speed:1740
Speed Max:1740
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230
