ZARF2068-TV INA

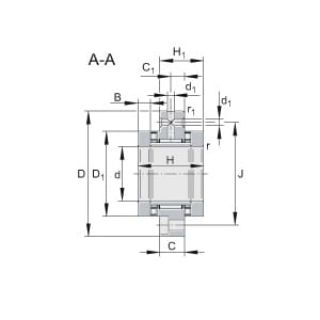

Picture of ZARF2068-TV INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
ZARF2068-TV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

INA

Type

Double Direction

Description

INA Needle Roller/Axial Cylindrical Roller Bearing, Double Direction, Series: ZARF, 20 mm Bore Dia, 68 mm Outside Dia, 46 mm W, Open Closure, 33500 N Dynamic/76000 N Static/6300 N Fatigue Axial and 14900 N Dynamic/22400 N Static/3350 N Fatigue Radial, Polyamide 66 Cage, 2000 rpm Grease/7000 rpm Oil Maximum, -30 to 120 deg C

Application

For screw mounting

Specifications

Bore Diameter:20 mm
Cage Material:Polyamide 66
Closure Type:Open
Load Capacity:33500 N Dynamic/76000 N Static/6300 N Fatigue Axial and 14900 N Dynamic/22400 N Static/3350 N Fatigue Radial
Maximum Speed:2000 rpm Grease/7000 rpm Oil
Outside Diameter:68 mm
Series:ZARF
Temperature Rating:-30 to 120 deg C
Width:46 mm
