ZEP2108 RND

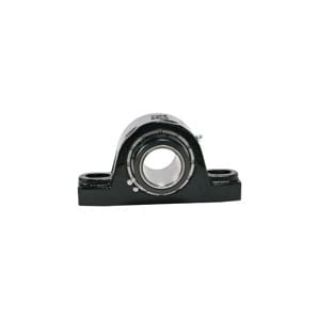

Picture of ZEP2108 RND
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
ZEP2108
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$518.11 / EA

Description

Brand Name

Rex®

Type

Normal Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Normal Duty, Series: 2000, 1-1/2 in Bore, 5-1/4 to 6-1/2 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-7/8 in Overall Length, 2-7/8 in Overall Width, 4-3/8 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/4 in Base Width, Single Set Screw Collar Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 19860 lb Dynamic/20900 lb Static Load, 225 deg F, 5250 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

  • Easy bearing clearance adjustment
  • Replaceable bearing
  • Pre-lubricated with standard grease for normal operation
  • Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
  • Rugged housing
  • Simplest installation
  • Most economical
  • Misalignment capabilities total of 4 deg
  • Factory set clearance and lubrication
  • Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
  • Field interchangeable seals
  • Type E interchange

Specifications

Base to Bore Centerline:2-1/8 in
Base Width:2-1/4 in
Bolt Center-to-Center Length:5-1/4 to 6-1/2 in
Bore Diameter:1-1/2 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:19860 lb Dynamic/20900 lb Static
Locking Device:Single Set Screw Collar
Material:Cast Iron
Maximum Speed:5250 rpm
Mounting Type:Two-Bolt Base
Overall Height:4-3/8 in
Overall Length:7-7/8 in
Overall Width:2-7/8 in
Seal Type:Clearance
Series:2000
Temperature Rating:225 deg F

Resources

Video

Products Specifications

Brand Name
Rexnord
Locking Type
Set Screw Lock Single-Collar
Measuring Units
Inch
Shaft Diameter
1 1/2 in
Type
2 Bolt Pillow Block
