Actual Product May Vary From Image

ZEP2200 RND

Name: ZEP2200 RND
Brand: Rexnord
SKU: ZEP2200 RND
Price: 483.28 USD
Availability: InStock

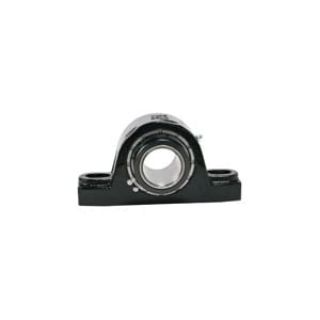

Rex® ZEP2200 2000 Normal Duty Pillow Block Spherical Roller Bearing, 2 in Dia Bore, 6-1/16 to 7-1/4 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8-7/8 in OAL x 4-9/16 in OAH

Manufacturer: Rexnord

Manufacturer part number: ZEP2200

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$483.28

Qty:

Product Details

Brand Name

Rex®

Type

Normal Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Normal Duty, Series: 2000, 2 in Bore, 6-1/16 to 7-1/4 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8-7/8 in Overall Length, 3-1/8 in Overall Width, 4-9/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/2 in Base Width, Single Set Screw Collar Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 28890 lb Dynamic/33200 lb Static Load, 225 deg F, 4050 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Simplest installation
Most economical
Misalignment capabilities total of 4 deg
Factory set clearance and lubrication
Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
Field interchangeable seals
Type E interchange

Specifications

Base to Bore Centerline:	2-1/4 in
Base Width:	2-1/2 in
Bolt Center-to-Center Length:	6-1/16 to 7-1/4 in
Bore Diameter:	2 in
Bore Type:	Round
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	28890 lb Dynamic/33200 lb Static
Locking Device:	Single Set Screw Collar
Material:	Cast Iron
Maximum Speed:	4050 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	4-9/16 in
Overall Length:	8-7/8 in
Overall Width:	3-1/8 in
Seal Type:	Clearance
Series:	2000
Temperature Rating:	225 deg F
