ZEP2203 RND

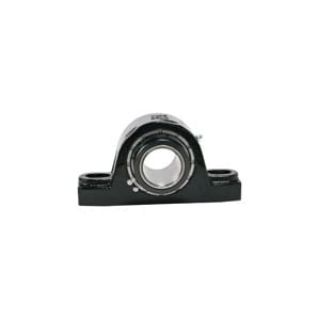

Picture of ZEP2203 RND
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
ZEP2203
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$563.15 / EA

Description

Brand Name

Rex®

Type

Normal Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Normal Duty, Series: 2000, 2-3/16 in Bore, 6-9/16 to 8 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 9-5/8 in Overall Length, 3-5/16 in Overall Width, 5 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-9/16 in Base Width, Single Set Screw Collar Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 36370 lb Dynamic/44400 lb Static Load, 225 deg F, 3650 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

  • Easy bearing clearance adjustment
  • Replaceable bearing
  • Pre-lubricated with standard grease for normal operation
  • Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
  • Rugged housing
  • Simplest installation
  • Most economical
  • Misalignment capabilities total of 4 deg
  • Factory set clearance and lubrication
  • Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
  • Field interchangeable seals
  • Type E interchange

Specifications

Base to Bore Centerline:2-1/2 in
Base Width:2-9/16 in
Bolt Center-to-Center Length:6-9/16 to 8 in
Bore Diameter:2-3/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:36370 lb Dynamic/44400 lb Static
Locking Device:Single Set Screw Collar
Material:Cast Iron
Maximum Speed:3650 rpm
Mounting Type:Two-Bolt Base
Overall Height:5 in
Overall Length:9-5/8 in
Overall Width:3-5/16 in
Seal Type:Clearance
Series:2000
Temperature Rating:225 deg F

Resources

Video

Products Specifications

Brand Name
Rexnord
Locking Type
Set Screw Lock Single-Collar
Measuring Units
Inch
Shaft Diameter
2 3/16 in
Type
2 Bolt Pillow Block
