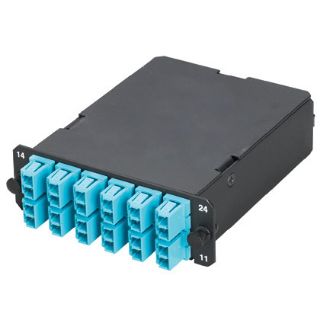

FCX-24-10Y PAN

Pre-terminated high density modular fiber optic cassettes shall comply with IEEE 802.3ae 10 GbE and ANSI T11.2 fibre channel requirements. Fiber optic cassettes shall support network data rates up to 10 Gbps for link lengths up to 300 m using laser optimized OM3 fiber and link lengths up to 550 m using OM4 fiber. Optimized cassettes shall provide insertion loss of 0.5 dB maximum and standard cassettes shall provide 1 dB maximum to meet IEEE 802.3ae max channel loss specification of <26 dB. Cassettes shall employ high performance MTP™ connectors on the rear of the units routed to 12 or 24 duplex LC or 12 simplex or 6 duplex SC adapters on the patch field side. Adapter housing colors shall follow TIA/EIA-568-C.3 suggested color identification scheme. Cassettes shall interconnect with high density SFF MTP™ ribbon interconnect cable assemblies. High density cassette enclosures shall hold up to 4 cassettes, allowing up to 96 fiber connections to be deployed in one rack unit (1 RU).

Panduit®, FCX-24-10Y, Fiber Optic Cassette, Pre-Terminated, Series: SFQ, Duplex Adapter, LC End A, Male MPO End B, 24 Fibers, 10Gig™ 50/125 um OM3 Multi-Mode Fiber, Zirconia Ceramic Connector, Aqua
