61-340 IDE

Name: 61-340 IDE
Brand: Ideal Industries
SKU: 61-340 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

61-340

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 25C086

Description

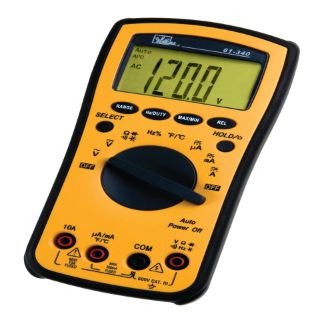

IDEAL® Test-Pro® Digital Multimeter, Series: 340, 4 to 600 VAC, 400 mV to 600 VDC, 400 uA to 10 A, 10 Hz to 4 MHz Frequency, 4 kOhm to 40 MOhm Resistance, Safety Rating: CAT III 600 VAC/VDC, 400 nF to 4000 uF Capacitance, 73 deg C +/- 41 deg C <75% RH Accuracy, LCD Display, 61-340 200 hr, 61-342 150 hr 9 VDC NEDA 1604 Alkaline Battery, Yes Diode Test, 7 in H x 3.5 in W x 1.9 in D Dimensions, 32 to 140 deg F at <75% RH, -4 to 140 deg F at <80% RH without Battery Storage Temperature

Standards

RoHS Compliant | UL File No. 61010 | CE Marked | C 12966

Features

Measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency and audible continuity
Relative mode, backlight
Minimum maximum data hold
Low battery indicator
Auto power off
0.7 V RMS, greater than 1 MHz 5 V RMS sensitivity
400 mVDC/4/40/400 VDC at +/-(0.5% +5), 600 VDC at +/-(1% +3) DC voltage accuracy
F-340 0.500 A (500 VAC) 6.350 x 32 mm fuse, F-341 10 A (1000 VAC) 10 x 38 mm fuse, 9 VDC battery, TL-100 test leads with alligator clips, C-290 nylon carrying case replacement parts
The beeper turns on less than 25 ohm and turns off at greater than 120 ohm continuity
-58 to 1500 deg F at +/-(3% +5), -50 to 800 deg C at +/-(3% +3) temperature measurement accuracy
10 MOhm for VAC and VDC input impedance
10/100 Hz/1/10/100 kHz/1/10 MHz at +/-(0.1% +3) frequency measurement accuracy

Includes

TL-310 Test Leads, 9 VDC Battery and Operating Instructions

Specifications

Accuracy:	73 deg C +/- 41 deg C <75% RH
Amperage Rating:	400 uA to 10 A
Battery Type:	61-340 200 hr, 61-342 150 hr 9 VDC NEDA 1604 Alkaline
Capacitance:	400 nF to 4000 uF
Country of Origin:	CN
Dimensions:	7 in H x 3.5 in W x 1.9 in D
Diode Test:	Yes
Display Type:	LCD
Frequency Rating:	10 Hz to 4 MHz
Resistance:	4 kOhm to 40 MOhm
Safety Rating:	CAT III 600 VAC/VDC
Series:	340
Temperature Rating:	32 to 140 deg F at <75% RH, -4 to 140 deg F at <80% RH without Battery Storage Temperature
Voltage Rating:	4 to 600 VAC, 400 mV to 600 VDC
