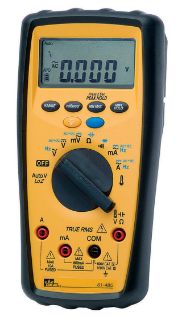

61-486 IDE

Name: 61-486 IDE
Brand: Ideal Industries
SKU: 61-486 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

61-486

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Type

Commercial Grade

Alternate Supplier #

Grainger - 24Z833

Description

The 480 Series multimeters accurately test and measure today's high-tech commercial and industrial circuits. These rugged models include the convenience of auto/ranging modes as well as an analog bar graph display. True RMS readings ensure worry-free, accurate readings where harmonics exist.

IDEAL® Digital Multimeter, Commercial Grade, Series: 480, 60 mV to 1000 VAC/VDC, 60 mA to 10 A AC/DC, 99.9 to 100 kHz, 600 Ohm to 40 MOhm, Safety Rating: CAT III 1000 VAC, CAT IV 600 VAC, 1 nF to 10 mF, +/-(PCT Reading + Number of Digits) at 23 deg C, +/- 5 deg C <80% RH Accuracy, Backlit, 9 VDC Alkaline Battery, 190 mm H x 94 mm W x 48 mm D, -40 to 752 deg F

Standards

RoHS Compliant | UL 61010 | CE Certified | C 12966

Features

True RMS current and voltage
Auto AC/DC voltage detect with low impedance (Auto - VLoZ)
Measures capacitance, frequency
Non contact voltage detect
Low battery indicator
Auto power off
Audible Continuity
Data Hold Min/max/relative modes
Backlight
Analog bar graph

Includes

TL-310 Test Leads, 9 VDC Battery and Operating Instructions

Specifications

Accuracy:	+/-(PCT Reading + Number of Digits) at 23 deg C, +/- 5 deg C <80% RH
Amperage Rating:	60 mA to 10 A AC/DC
Battery Type:	9 VDC Alkaline
Capacitance:	1 nF to 10 mF
Country of Origin:	TW
Dimensions:	190 mm H x 94 mm W x 48 mm D
Display Type:	Backlit
Frequency Rating:	99.9 to 100 kHz
Resistance:	600 Ohm to 40 MOhm
Safety Rating:	CAT III 1000 VAC, CAT IV 600 VAC
Series:	480
Temperature Rating:	-40 to 752 deg F
Voltage Rating:	60 mV to 1000 VAC/VDC
