A2506NJ-OC PRS

Name: A2506NJ-OC PRS
Brand: Prosoft Technology
SKU: A2506NJ-OC PRS
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

A2506NJ-OC

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ProSoft Technology

Type

Omnidirectional

Description

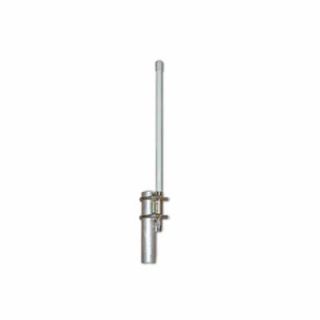

The RadioLinx A2506NJ-OC mast mount antenna provides multiband coverage in a rugged U.V. Stable, plastic radome with an aluminum base that is ideal for indoor or outdoor applications. This antenna also provides a broad elevation pattern antenna radiation pattern that has been shaped to direct energy where it is needed, while suppressing the misdirected upper and lower sidelobe energy.

ProSoft Technology RadioLinx Antenna, Omnidirectional, <2:1 VSWR, 2.4 to 2.48/5.15 to 5.85 GHz Frequency, 6/8 dBi Gain, 50 Ohm Impedance, N (Female) Connector, Linear Polarization, 26 in Height, Plastic, Mast Mounting, -40 to 85 deg C

Application

For industrial applications

Features

Multiple band coverage supports 2.4 GHz and 5.15 to 5.8 GHz broadband networks, eliminating the need for a second or third antenna in POP locations where mounting space is limited or costly
Optimized elevation pattern, minimizes misdirected energy by suppressing sidelobe energy and directing the radiated energy towards the desired area of coverage
25 W maximum power
125 mph wind survival
11.5 ft-lb bending moment at rated wind

Specifications

Connector Type:	N (Female)
Frequency Rating:	2.4 to 2.48/5.15 to 5.85 GHz
Gain:	6/8 dBi
Height:	26 in
Impedance:	50 Ohm
Material:	Plastic
Mounting Type:	Mast
Polarization:	Linear
Temperature Rating:	-40 to 85 deg C
Voltage Standing Wave Ratio (VSWR):	<2:1
