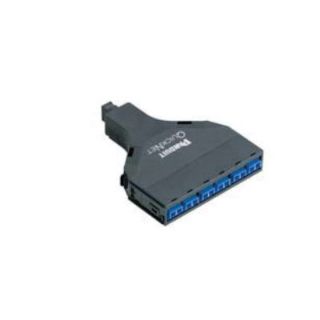

FQ9-12-10B PAN

Name: FQ9-12-10B PAN
Brand: Panduit
SKU: FQ9-12-10B PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FQ9-12-10B

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Method B

Description

QuickNet™ SFQ Series MTP™ Fiber Optic Cassettes comply with IEEE 802.3ae 10 GbE and ANSI T11.2 Fiber Channel requirements. Fiber optic cassettes support network data rates up to 10 Gbps for link lengths up to 300 m using laser optimized OM3 fiber and link lengths up to 550 m using OM4 fiber. Optimized cassettes provide insertion loss of 0.5 dB max and standard cassettes provide 0.75 dB max to meet IEEE 802.3ae max channel loss specification of <26 dB QuickNet™ SFQ Series MTP™ Fiber Optic Cassettes employ high performance MTP™ connectors on the rear of the units routed to 6 or 4 duplex LC colors shall follow TIA/EIA-568-C.3 suggested color identification scheme. They interconnect with high density SFF MTP™ ribbon interconnect cable assemblies. High density cassette patch panels shall hold up to 8 cassettes, allowing up to 96 fiber connections to be deployed in one rack unit (1 RU).

Panduit® QuickNet™ Fiber Optic Cassette, Method B, Series: SFQ, Duplex Adapter, LC End A, Male MTP™ End B, 12 Fibers, 9/125 um OS1/OS2 Single Mode Fiber, Plastic, Rear Mount

Application

Used to allows system designers to tailor configuration, reach and breakout construction

Standards

Features

Compatible with QuickNet™ patch panels for up to 96 fiber connections in 1RU with QAPP48HDBL QuickNet™ 48-port angled patch panel
Low insertion loss of 0.5 dB max per cassette and 1 dB max per standard cassette, ensures system meets IEEE 802.3ae max channel loss specification of <2.6 dB
Connect together with high density female MTP™ cable assemblies as interconnecting network segments for deploying a remote or data center location in min
Significantly reduce installation time and labor by eliminating field connector terminations
Factory terminated, assembled and 100% tested
Insertion loss data provided on every fiber cassette
Return loss data provided on all singlemode fiber cassettes
Lifetime traceability of test data to a QC number on each fiber cassette
10Gig™ OM4 50/125 um fiber cassettes are tested per IEEE 802.3ae 10 GbE to support network transmission speeds up to 10 Gbps for link lengths up to 550 m at 850 nm, backward compatible with all 50/125 um (OM2) MPO or MTP™ system requirements
>55 dB (singlemode)
Plastic module and adapter

Specifications

Adapter Type:	Duplex
Connector Material:	Plastic
Country of Origin:	CR
End A:	LC
End B:	Male MTP™
Fiber Count:	12
Fiber Type:	9/125 um OS1/OS2 Single Mode
Mounting Type:	Rear
Series:	SFQ
