FQZN-08-10AF PAN

Name: FQZN-08-10AF PAN
Brand: Panduit
SKU: FQZN-08-10AF PAN
Availability: OutOfStock

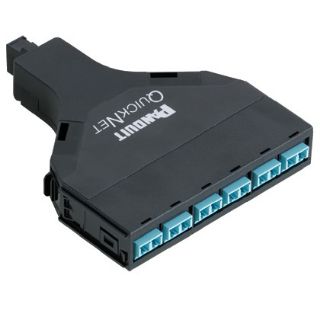

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FQZN-08-10AF

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Flipped Pair Modified Method A

Description

QuickNet™ SFQ Series MTP™ Fiber Optic Cassettes comply with IEEE 802.3ae 10 GbE and ANSI T11.2 Fibre Channel requirements. Fiber optic cassettes support network data rates up to 10 Gbps for link lengths up to 300 m using laser optimized OM3 fiber and link lengths up to 550 m using OM4 fiber. Optimized cassettes provide insertion loss of 0.5 dB maximum and standard cassettes provide 0.75 dB max imum to meet IEEE 802.3ae max. channel loss specification of <26 dB. QuickNet™ SFQ Series MTP™ Fiber Optic Cassettes employ high performance MTP™ connectors on the rear of the units routed to 6 or 4 duplex LC colors shall follow TIA/EIA-568-C.3 suggested color identification scheme. They interconnect with high-density SFF MTP™ ribbon interconnect cable assemblies. High-density cassette patch panels shall hold up to 8 cassettes, allowing up to 96 fiber connections to be deployed in one rack unit (1 RU).

Panduit®, FQZN-08-10AF, Fiber Optic Cassette, Flipped Pair Modified Method A, Series: SFQ, Duplex Adapter, LC End A, Male MPO End B, 8 Fibers, Standard 10Gig™ 50/125 um OM4 Multi-Mode Fiber, Zirconia Ceramic Connector, Aqua

Application

Allows System Designer to Tailor Configuration, Reach, Breakout Construction to Application Requirement and to Minimize Waste, Optimize Cable Management, Improve Flexibility, Manageability for Lower Installation Cost Application

Standards

ANSI T11.2 | ARRA Compliant | Buy American Act Compliant | IEEE 802.3ae | RoHS 2002/95/EC | TIA/EIA 568-C.3 | PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Features

Standard loss

Specifications

Adapter Type:	Duplex
Color:	Aqua
Connector Material:	Zirconia Ceramic
End A:	LC
End B:	Male MPO
Fiber Count:	8
Fiber Type:	10Gig™ 50/125 um OM4 Multi-Mode
Series:	SFQ
