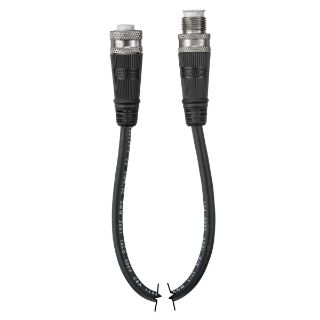

HJMS03125 HWD

Name: HJMS03125 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HJMS03125 HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HJMS03125

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Pole Straight

Description

Introducing the new Hubbell® Mini-Quick® line of molded control connectors for automated manufacturing and signal & control applications. Mini-Quick® has been designed to withstand the harsh environments.

Wiring Device-Kellems Mini-Quick® Jumper Cable, 3-Pole Straight, 600 VAC/VDC, 15 A, SEOOW Conductor, 16 AWG Conductor, 0.99 in OD, 25 ft Length, Female x Male End Style, 65/34 Strands, /= 1000 MOhm Isolation Resistance, Nylon 6/6 Insulation, TPE Jacket, Black Jacket, -20 to 105 deg C

Application

For quick connect disconnect signal and control devices

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2238 | 50E File No. E192071 | CSA C22.2 File No. 182.3 | 94.2-07 | cULus Listed | NEMA 4 | 4X | 12 | 13

Features

Nickel plated brass coupling nuts and receptacle shells
Insulgrip connector body design
Plating resists corrosion in high abuse environments
Cable assembly resists dirt and blends with environment giving a clean look to the installation
Third party certified for electrical, mechanical and environmental performance
Ergonomic connector body has an industrial look

Specifications

Amperage Rating:	15 A
Conductor Size:	16 AWG
Conductor Type:	Copper/SEOOW
Country of Origin:	US
End Style:	Female x Male
Insulation Material:	Nylon 6/6
Jacket Color:	Black
Jacket Material:	TPE
Length:	25 ft
Outside Diameter:	0.99 in
Resistance:	</= 5 MOhm Contact/>/= 1000 MOhm Isolation
Strands:	65/34
Temperature Rating:	-20 to 105 deg C
Voltage Rating:	600 VAC/VDC
