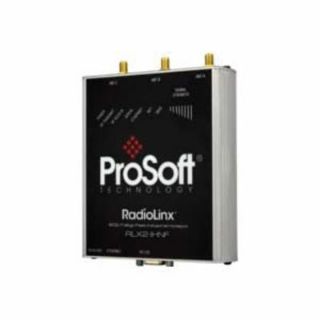

RLX2-IHNF-A PRS

Name: RLX2-IHNF-A PRS
Brand: Prosoft Technology
SKU: RLX2-IHNF-A PRS
Price: 1,799.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

RLX2-IHNF-A

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,799.00 / EA

Description

Brand Name

ProSoft Technology

Description

The ProSoft technology fast industrial hotspot (RLX2-IHNF) provides secure wireless solutions for plant-floor, SCADA automation, process control systems and mobile worker Wi-Fi infrastructure. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 3.2 km. The radio features Ultra-Fast access point switchover times of less than 10 ms, which is ideal for applications such as automated storage-retrieval systems, automotive skillet lines and bottle filling machines. The radio will be appreciated by both sides - OT/IT. Your OT personnel will like the radio's EtherNet/IP embedded object and Modbus agent support, which allows them to get diagnostic data into their PLC immediately, where they can analyze and act upon data, optimizing your resources. IT departments will appreciate the radio's SNMP support.

ProSoft Technology Fast Industrial Hotspot, 10/100/1000 Base-T/Shielded RJ45/RP-SMA Connector, 6.5 to 130 Mbps 1-Channel/13.5 to 300 Mbps 2-Channel Data Transfer Rate, 10/24 VDC, <8 W, DIN Rail Mount, 5.82 in H x 4.64 in W x 1.48 in D

Features

EtherNet/IP™- or Modbus®-based PLCs/PACs can use message instructions to read diagnostic information from the radios, helping to reduce downtime when troubleshooting wireless network problems
802.11i, WPA-2 personal/enterprise using 128-bit AES encryption ensures secure networking
Radius security ensures secure networking with advanced authentication and encryption
Virtual local area networks (VLAN) allow for secure network segmentation
Quality of service (QoS) provides data prioritization for I/O control devices, video data, etc
Ultra-fast roaming (under 10 ms) maintains seamless, high-speed connections to one or more devices on moving equipment and machines (such as cranes, AGVs and carriers) as they travel between access points
IGMP snooping and packet filtering optimizes UDP multicast traffic for superior EtherNet/IP I/O communications
Supports the ability to communicate with multiple ethernet devices when used with existing third-party wireless infrastructures
Supports power over ethernet (PoE) to reduce cabling costs
Disaster recovery feature allows the radio configuration to be stored on a microSD card for quick field replacement
Connect serial networks (Modbus, DNP 3, etc.) over 802.11 wireless networks
100% RH, with no condensation
10/100/1000 Base-T connector, shielded RJ45 IEEE 802.3, 802.3u, 802.3x ethernet port
RS232 DB9 female serial port
(3) RP-SMA connectors antenna port
Industrial microSD memory module
802.11abgn
-40 to 158 deg F operating temperature

Specifications

Connector Type:	10/100/1000 Base-T/Shielded RJ45/RP-SMA
Country of Origin:	US
Data Transfer Rate:	6.5 to 130 Mbps 1-Channel/13.5 to 300 Mbps 2-Channel
Dimensions:	5.82 in H x 4.64 in W x 1.48 in D
Mounting Type:	DIN Rail
Power Consumption:	<8 W
Voltage Rating:	10/24 VDC
