SPF002HXR LIT

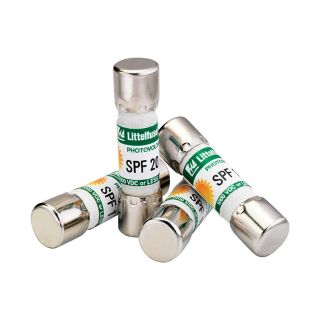

Picture of SPF002HXR LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
SPF002HXR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$75.24 / EA

Description

Brand Name

Littelfuse®

Type

Fast Acting Full Range Midget

Description

The SPF solar protection fuse series has been specifically designed for the protection of photovoltaic (PV) systems. This family of midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse overcurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the SPF series is UL listed to safely interrupt faulted circuits up to this demanding voltage level. Littelfuse® offers 14 ampere ratings to match specific requirements in a variety of applications.
Littelfuse® POWR-GARD® Solar Fuse, Fast Acting Full Range Midget, Series: SPF, Non-Indicating, Non-Rejection, 2 A, 1000 VDC, 20 kA Interrupt, <=2 ms Response, Radial Blade Bend Terminal, PC Board Mount, Cylindrical Body, Dual Element, Melamine, 0.406 in Dia x 1.57 in L Body Size

Application

Inverters, Combiner Boxes and Battery Charge Controllers

Standards

UL 248-19 Recognized | UL File No. E339112 | CSA File No. 029862_0_000 | IEC 60269-6 | CE Certified | gPV Approved | UL 2579 | PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Designed to UL and IEC photovoltaic specifications

Specifications

Amperage Rating:2 A
Body Size:0.406 in Dia x 1.57 in L
Body Type:Cylindrical
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:20 kA
Material:Melamine
Mounting Type:PC Board
Rejection/Non-Rejection:Non-Rejection
Response Time:<=2 ms
Series:SPF
Terminal Type:Radial Blade Bend
Voltage Rating:1000 VDC
