STT22083PYG FER

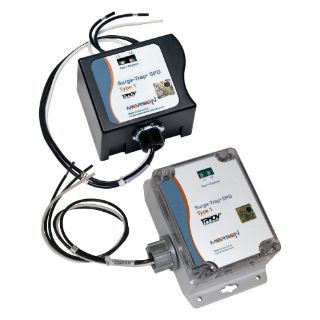

Picture of STT22083PYG FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
STT22083PYG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 35 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Mersen

Type

Type 1

Description

MERSEN's Surge-Trap® type 1 SPD is a fail safe and economical solution for applications that require a NEMA-style SPD. It is UL 1449 third edition approved and offers a wide range of voltage configurations to meet all needs in its class. The Surge-Trap® type 1 SPD features MERSEN's patented TPMOV® technology eliminating the need for additional overcurrent protection, thus providing substantial cost savings.
Mersen Surge-Trap® Surge Protective Device, Type 1, Series: STT2, 120 VAC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-L, <25 ns Response, LED Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating/Storage Temperature, NEMA 2/4X Enclosure, Panel Mounting, Pre-Wire Terminal, Polycarbonate, 4.725 in L x 3.75 in W x 2.37 in D Dimensions

Application

AC Distribution, Power Supplies, Industrial, Commercial, Telecommunications, Residential, IT/Data Center Applications, Indoor and Outdoor Applications

Standards

RoHS Compliant | UL 1449 File No. E210793 Type 1 USA/Type 2 Canada | ANSI C62.41 | IEEE C62.41 | UL 96 | cULus Listed

Features

  • Compact design
  • Easy to mount
  • No additional overcurrent protection devices required
  • For indoor, NEMA 2 applications
  • For outdoor, NEMA 4X applications
  • Status LEDs, wire markers
  • Pre-wired with 16 (0.4 m) 12 AWG conductors connection terminal-type

Specifications

Country of Origin:MX
Dimensions:4.725 in L x 3.75 in W x 2.37 in D
Electrical Ratings:120 VAC
Enclosure Type:NEMA 2/4X
Environmental Conditions:-40 to 85 deg C Operating/Storage Temperature
Frequency Rating:50/60 Hz
Indicator Type:LED
Material:Polycarbonate
Modes of Protection:L-N/L-L
Mounting Type:Panel
Nominal Discharge Current:20 kA
Peak Surge Current:50 kA
Phase:3 ph
Response Time:<25 ns
Series:STT2
Short Circuit Current Rating:200 kA
Terminal Type:Pre-Wire
