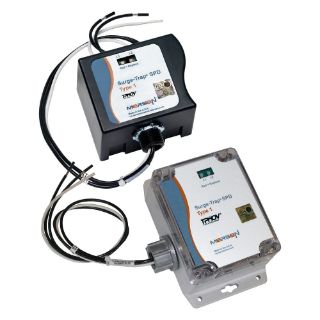

STT4X1201PG FER

Name: STT4X1201PG FER
Brand: Mersen
SKU: STT4X1201PG FER
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

STT4X1201PG

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Mersen

Type

Type 1

Description

MERSEN's Surge-Trap® type 1 SPD is a fail safe and economical solution for applications that require a NEMA-style SPD. It is UL 1449 third Edition approved and offers a wide range of voltage configurations to meet all needs in its class. The Surge-Trap type 1 SPD features MERSEN's patented TPMOV® technology eliminating the need for additional overcurrent protection, thus providing substantial cost savings.

Mersen Surge-Trap® Surge Protective Device, Type 1, Series: STT4X, 120 VAC Electrical Rating, 50/60 Hz Frequency, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: N-G/L-N/L-G, <25 ns Response, LED Indicator, 1 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, NEMA 2/4X Enclosure, Panel/Threaded Mounting, Pre-Wire Terminal, Polycarbonate, 4.5 in L x 4.45 in W x 3.6 in D Dimensions

Application

Indoor/Outdoor, AC Distribution, Power Supplies, Industrial, Commercial, Telecommunications, Residential and IT/Data Centers

Standards

RoHS Compliant | UL 1449 File No. E210793 | ANSI/IEEE C62.41 | UL 96 | cULus Listed

Features

Compact design
Easy to mount
No additional overcurrent protection devices required
Pre-wired with 16 (0.4 m) 12 AWG conductors connection terminal type

Specifications

Country of Origin:	MX
Dimensions:	4.5 in L x 4.45 in W x 3.6 in D
Electrical Ratings:	120 VAC
Enclosure Type:	NEMA 2/4X
Environmental Conditions:	-40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature
Frequency Rating:	50/60 Hz
Indicator Type:	LED
Material:	Polycarbonate
Modes of Protection:	N-G/L-N/L-G
Mounting Type:	Panel/Threaded
Nominal Discharge Current:	20 kA
Peak Surge Current:	50 kA
Phase:	1
Response Time:	<25 ns
Series:	STT4X
Short Circuit Current Rating:	200 kA
Terminal Type:	Pre-Wire
